#17450 - 10/19/16 06:53 AM gantry crane built from love
nnaatz Offline
MBN member
Registered: 02/25/10
Posts: 316
Loc: dexter, mn
Ok....maybe not love..but shit I had laying around for years

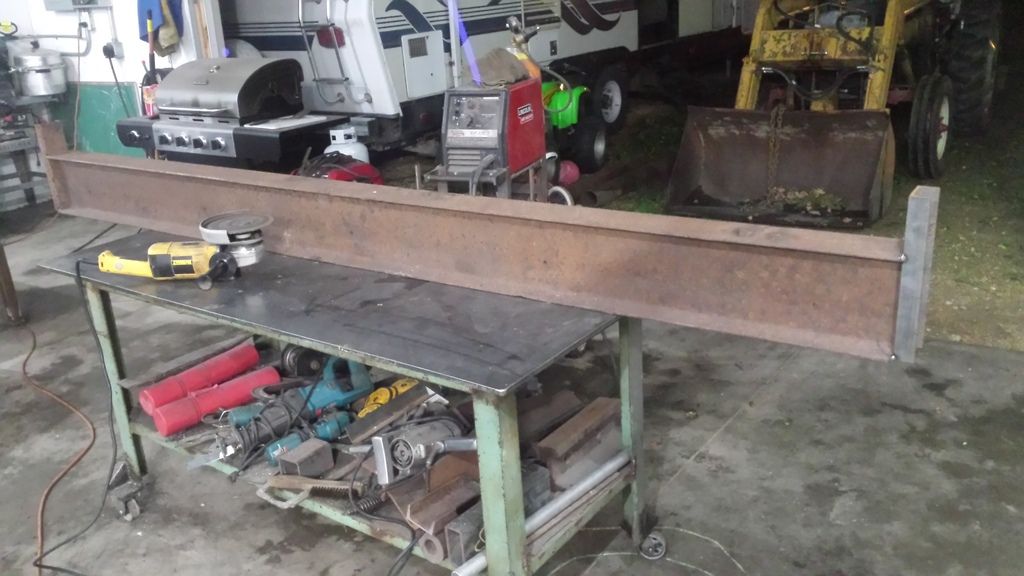

The beam it is 4x8 with 1/2 Web 9 foot long. I have got the channel iron sattel tacked to hold round 4in tube

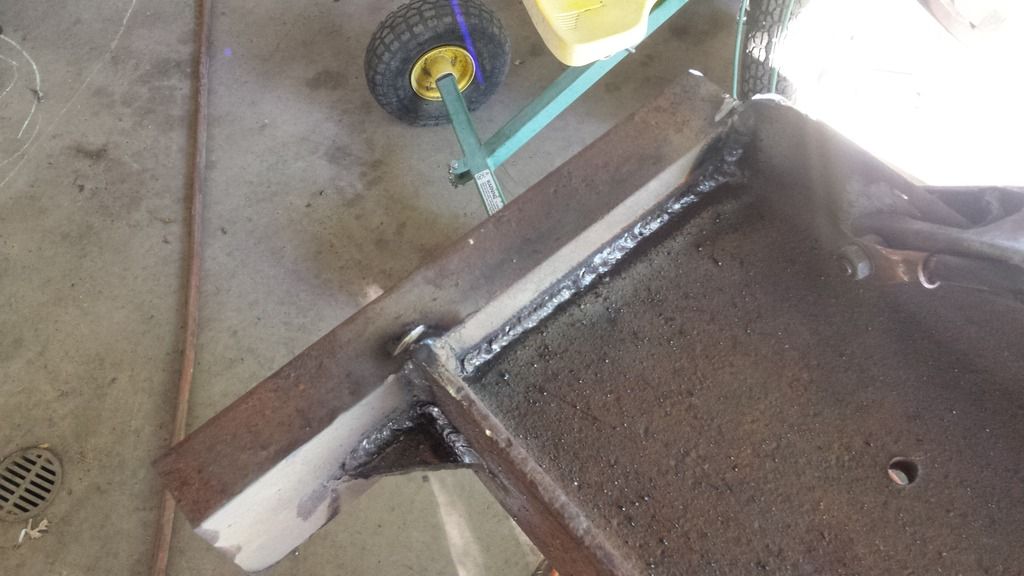

Welded after squared and small gusset added

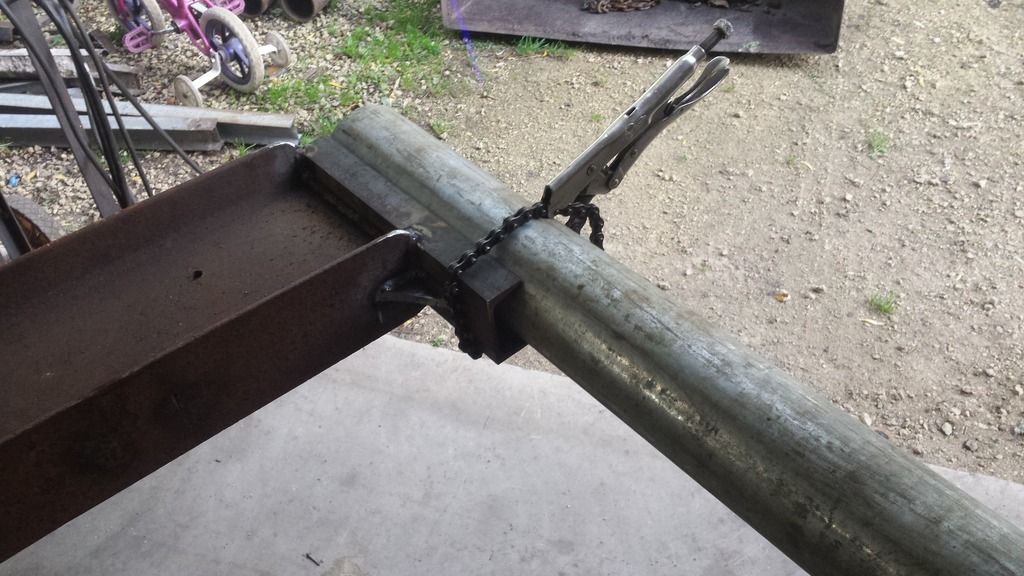

Tube clamp ready for ticky tack....should be held true Cuz channel is square

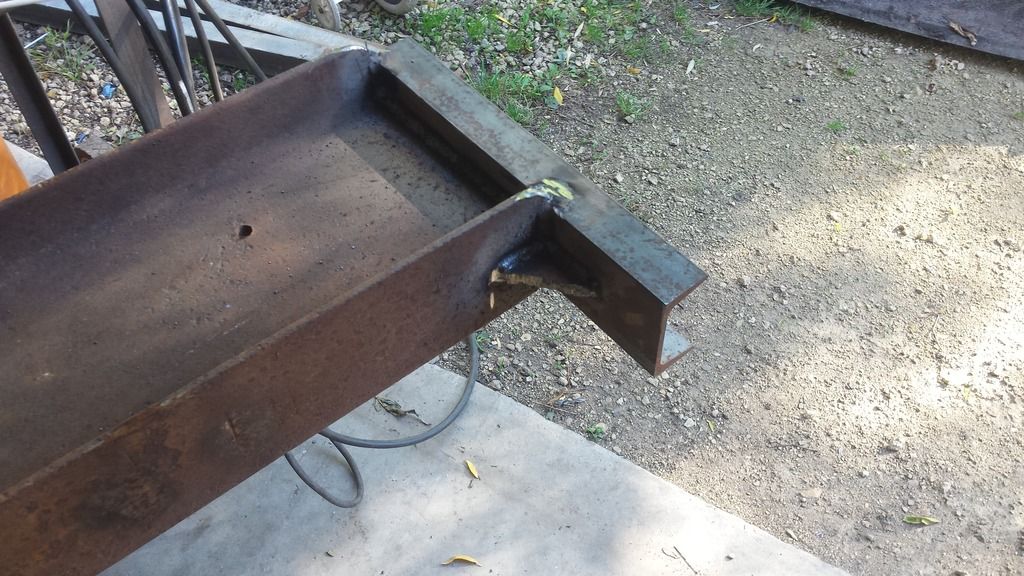

Tacked in squared using 3 4 5 method was only out by a quarter inch

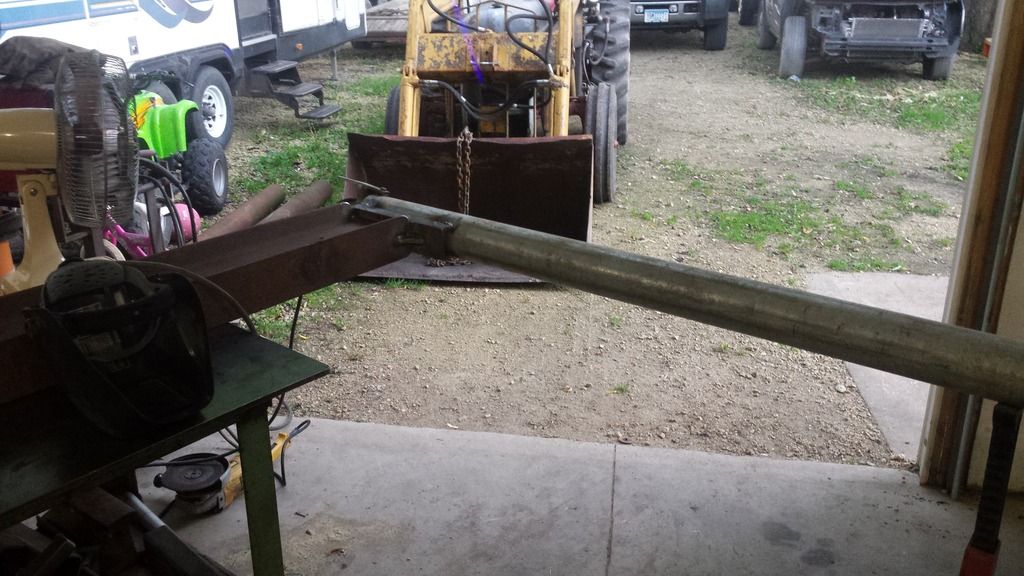

Here in standing it up..kinda a puckering experience. I did the feet same as sides with channel as the sattels
_________________________
so many irons, so little fire
Top
#17451 - 10/19/16 06:56 PM Re: gantry crane built from love [Re: nnaatz]
Lincoln Offline
MBN Enthusiast
Registered: 03/25/11
Posts: 563
Loc: Parry Sound Ontario Canada *****
That aught to be handy to have. cool
I've been thinking about building one that I could use outside...... but I really don't need any more projects started at the moment...
_________________________
If you can't weld well.....weld lots...
Top
#17453 - 10/20/16 08:23 AM Re: gantry crane built from love [Re: Lincoln]
nnaatz Offline
MBN member
Registered: 02/25/10
Posts: 316
Loc: dexter, mn
It's just a few hairs short of 8 foot. It needs to fit through the shop door. The sidewalls are 10....someday I'll make it adjustable...but I work on old tractors so it's needed more for support than high lift....
_________________________
so many irons, so little fire
Top
#17476 - 11/01/16 08:15 AM Re: gantry crane built from love [Re: nnaatz]
nnaatz Offline
MBN member
Registered: 02/25/10
Posts: 316
Loc: dexter, mn

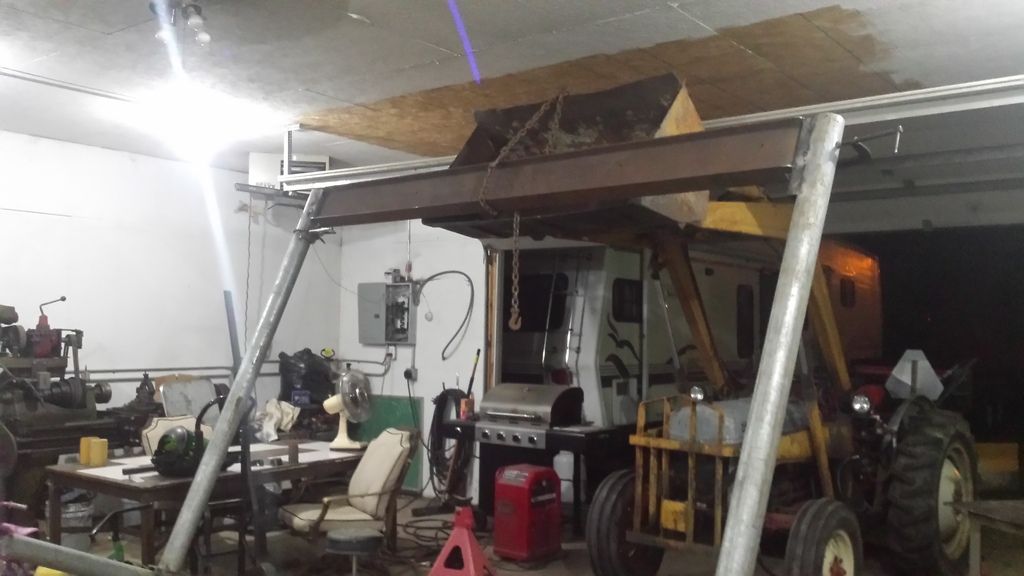

Up and finished

_________________________
so many irons, so little fire
Top
#17477 - 11/01/16 12:52 PM Re: gantry crane built from love [Re: nnaatz]
bunkclimber Offline
MBN Old hand
Registered: 02/14/10
Posts: 1097
Loc: Maryland *****
I see we have some executive decision maker chairs..hope those cushions aren't fabric..flying mig berries have cost me two chairs so far..always do a fire watch before closing up for the day
Top
#17482 - 11/01/16 07:47 PM Re: gantry crane built from love [Re: bunkclimber]
nnaatz Offline
MBN member
Registered: 02/25/10
Posts: 316
Loc: dexter, mn
There was many orders given from them chairs....maybe should listen sometime. ..
_________________________
so many irons, so little fire
Top
#17487 - 11/02/16 03:22 AM Re: gantry crane built from love [Re: nnaatz]
bunkclimber Offline
MBN Old hand
Registered: 02/14/10
Posts: 1097
Loc: Maryland *****
I'm kinda pro-forklift for moving and hoisting things; but by the looks of it between your engine crane and gantry you should be able to get er done with no difficulty..nice work
Top
#17491 - 11/02/16 11:34 AM Re: gantry crane built from love [Re: bunkclimber]
nnaatz Offline
MBN member
Registered: 02/25/10
Posts: 316
Loc: dexter, mn
I do have a forklift but not here in this shop...this shop is to small and be clumsy
_________________________
so many irons, so little fire
Top
