Got started on the quick attach. This spans some of last week up to today.

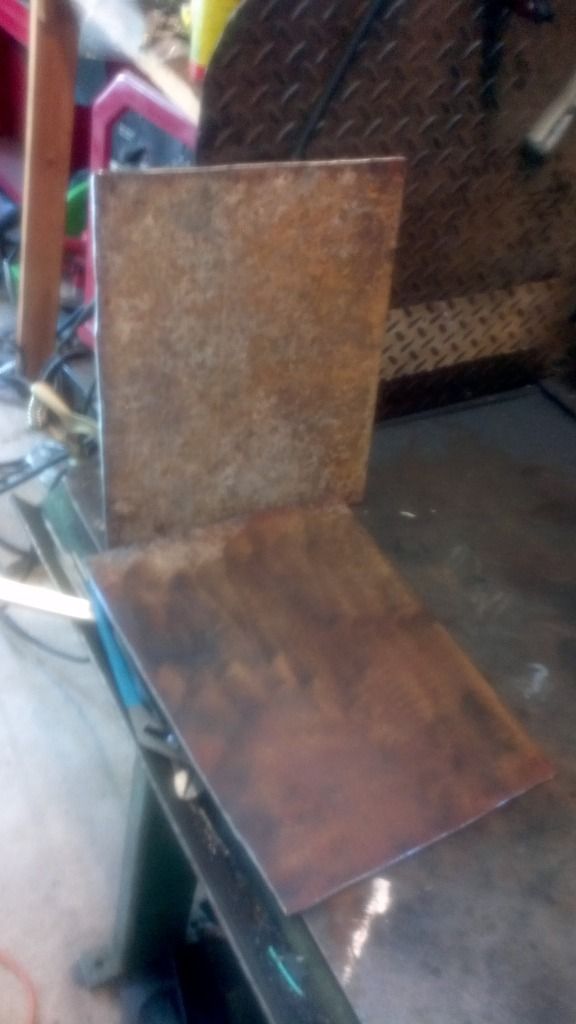

Burned these plates out for the attach and the square plate.
Drilling holes where the pins holes will be. Inserted a roll pin to hold it all together while other work was done.

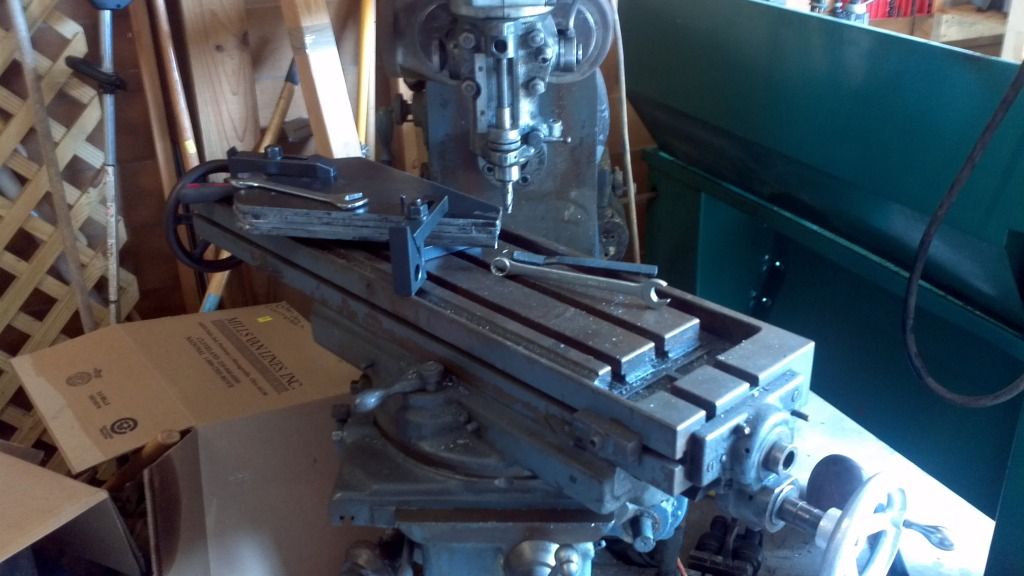

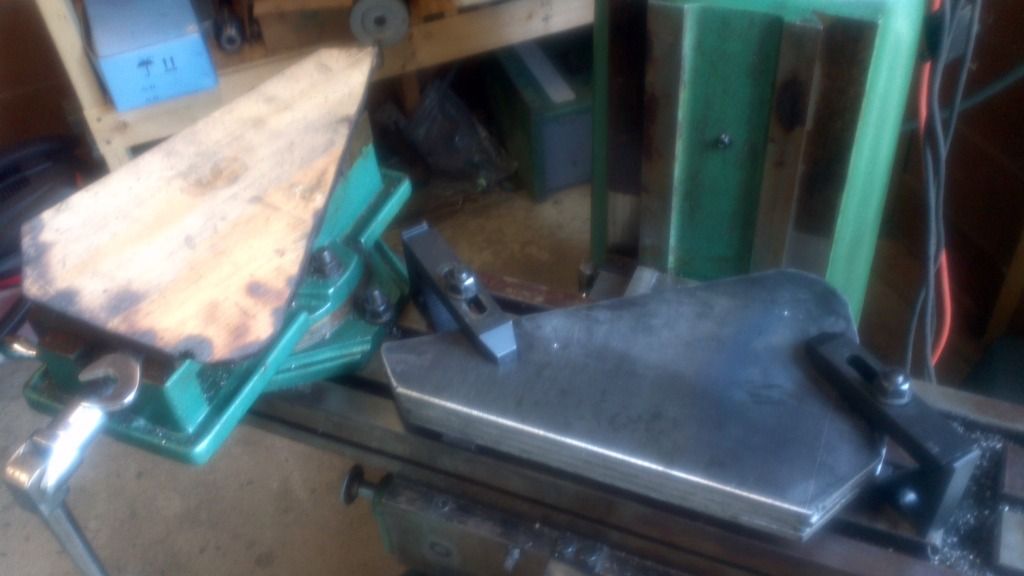

Squared the square plate on the mill. Cut the angles on the quick attach plate on the old mill.
Cut 30 degree and 45 degree angles on these plates.

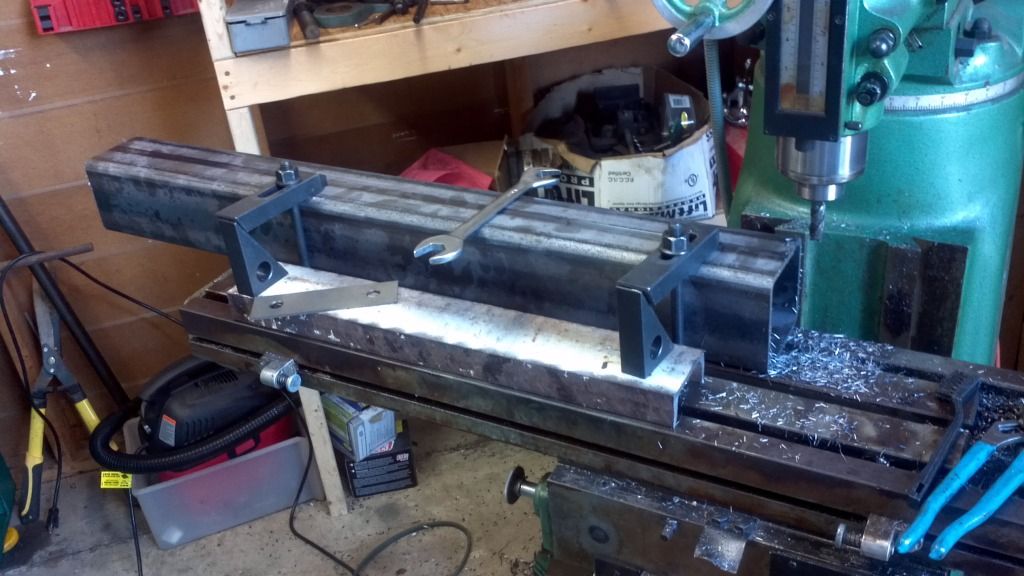

Cut 4" tube to length and squared ends on the mill.

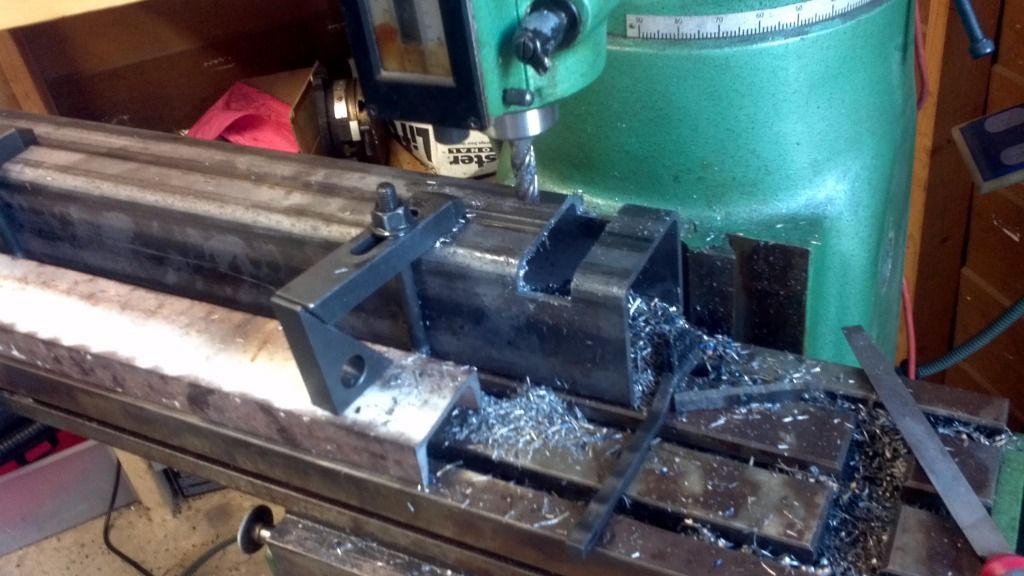

Got one slot cut in the tube. This is where the latch pin will slide through.

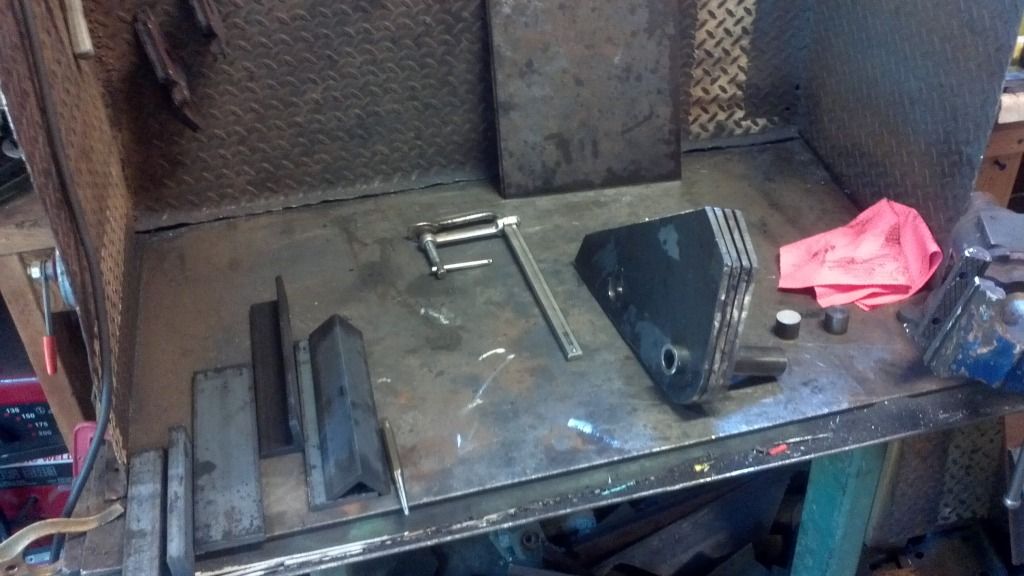

Other pieces I cut out. Most still have to be machined.

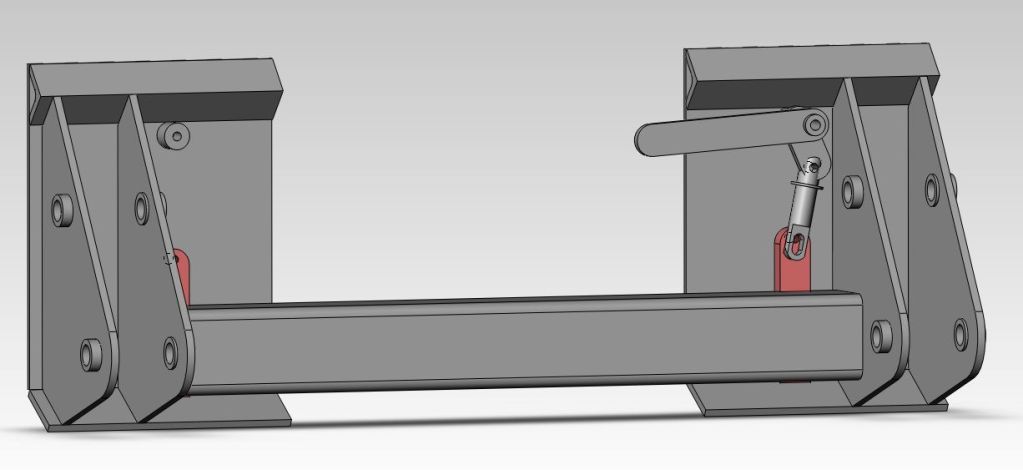

All this will eventually make this, and be mounted on the end of the loader arms.
